Portkeys OEYE RED EVF 4K 3G-SDI HDMI EVF with RED Camera Menu Control Adjustable
- Brand: Portkeys
- Product Code: OEYE-RED
- Availability: In Stock
$2,043
OEYE-RED 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
- 1920 x 1080 Resolution Micro-OLED EVF

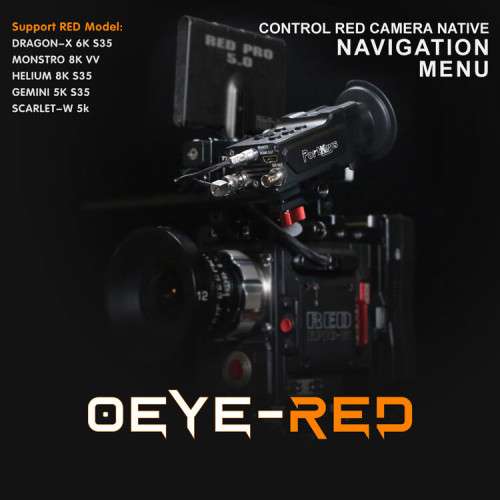

- Allows RED DSMC2/MONSTRO 8K VV/HELIUM 8K S35 Menu Control

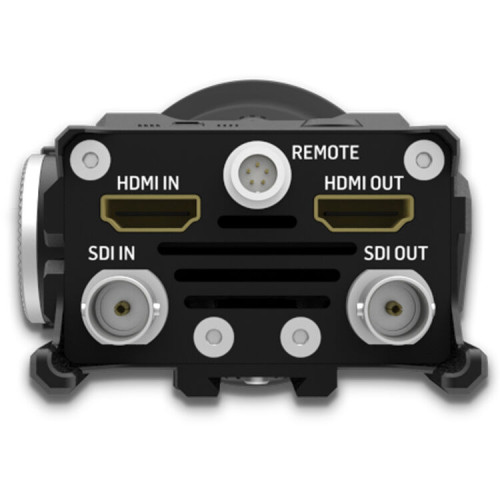

- 3G-SDI and HDMI Inputs/Loop Outputs
- Built-In +8 to -3 Adjustable Diopter
Key Features of OEYE RED

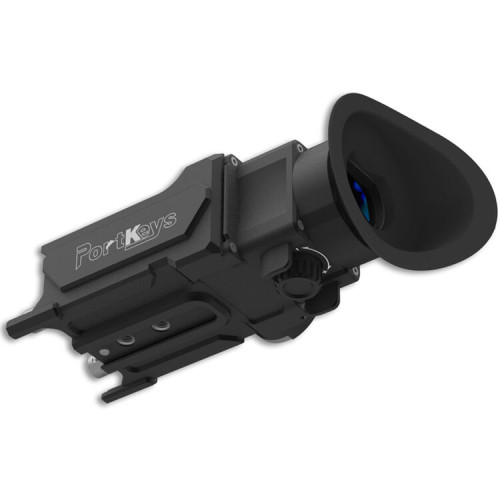

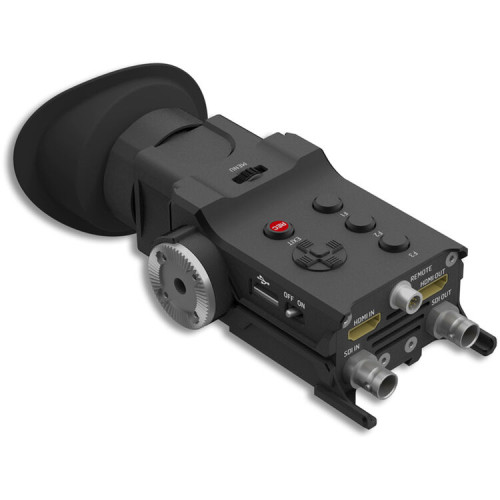

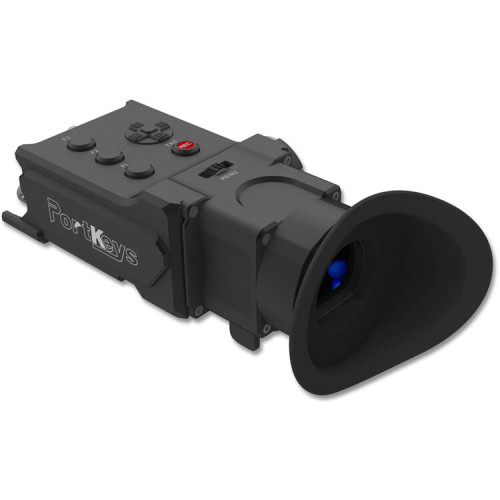

- 0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
- 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
- HDMI input and output support resolutions up to DCI 4K24
- 3G-SDI input and output support resolutions up to 1080p60

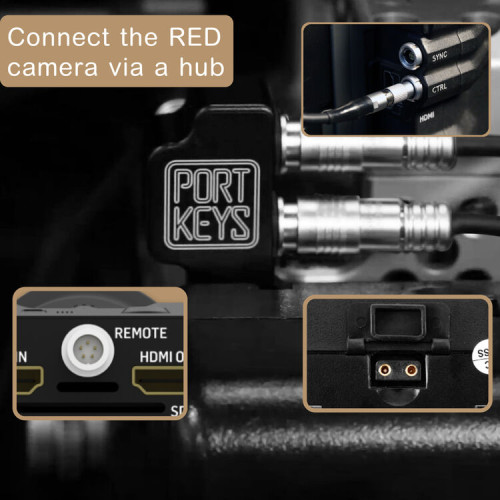

- 5-pin LEMO-type remote control output port

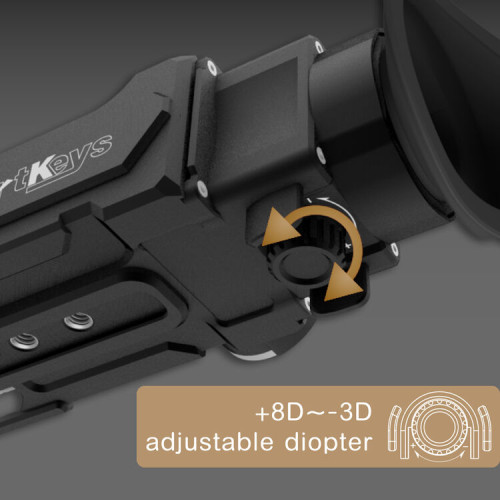

- Built-in adjustable +8 to -3 diopter

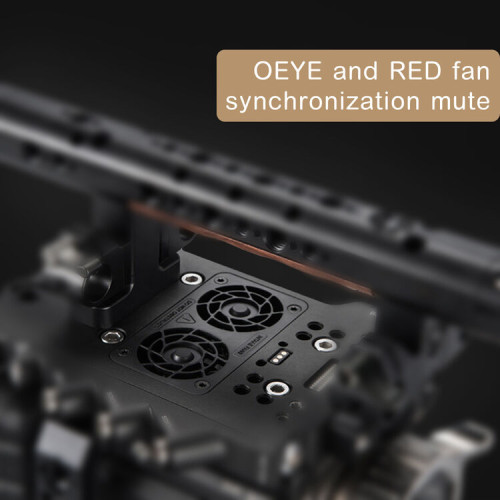

- Fan Synchronization Mute in Rec mode when work with RED camera
- Rosette mount on the side
- Durable aluminum construction

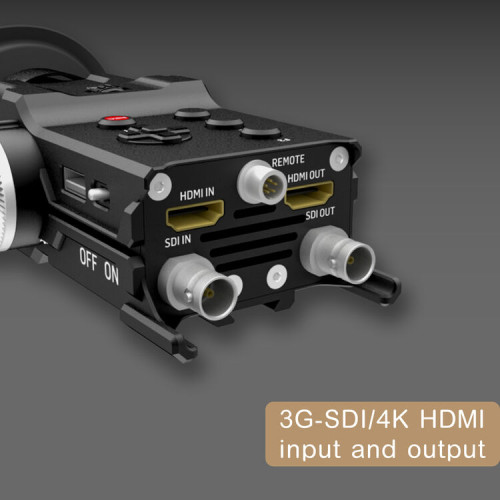

【Signal input】3G SDI、4K HDMI
【Signal output】3G SDI、4K HDMI
Note: OEYE will be with RED fan synchronization mute.
【Feature】3D LUT, Audio Meters, Pixel to Pixel, Brightness, Contrast, Chroma, Backlight, Zooming, OSD Flip, Grids, Peaking, False Color, Waveform…
Professional Tools of OEYE RED
- 3D LUT
- Audiometers
- Pixel-to-pixel
- Brightness
- Contrast
- Chroma
- Backlight
- Zoom
- OSD flip
- Grids
- Peaking
- False-color
- Waveform
- Sharpness
- Tint
- Color temperature
- Aspect
- Check field
- H/V delay
- Guides
- Crosshairs
- Zebra
- Underscan
Display
Color/MonochromeColorDisplay Size0.71″ / 1.8 cmScreen Resolution1920 x 1080Aspect Ratio16:09TouchscreenNoMaximum Brightness200nitContrast Ratio100,000:1Bit Depth / Color Support8-Bit (16.7 Million Colors)Pixels Per Inch (ppi)3102 ppiImage ControlsColor Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, ZebraI / O Video1 x BNC (3G-SDI) Input1 x BNC (3G-SDI) Loop Output1 x HDMI Type A Input1 x HDMI Type A Loop OutputVideo FormatHDMIDCI 4K: 24UHD 4K: 30 / 29.97 / 25/24 / 23.981080p: 60/59.94/50/30/29.97/25/24/23.981080PsF: 30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50576p: 50576i: 50480p: 60/59.94480i: 60 / 59.94SDI (8-Bit 4:2:2 YUV)1080p: 60/59.94/50SDI (8-Bit 4:4:4/4:2:2 RGB, YUV)1080p: 60/59.94/50/30/29.97/25/24/23.98720p: 60/59.94/50Camera Connection5-pin Aviation Connector Power Cable1 x D-TAP to 4-pin Aviation Connector Optics Diopter Correction-3.0 to +8.0Power DC Input Power7 to 24 VDCPower Consumption10 WGeneral Mounting1 x RosetteMaterial of ConstructionAluminumDimensions7.1 x 2.9 x 2.7″ / 180 x 72.4 x 69.7 mm, IncludingWeight14.1 oz / 385g
