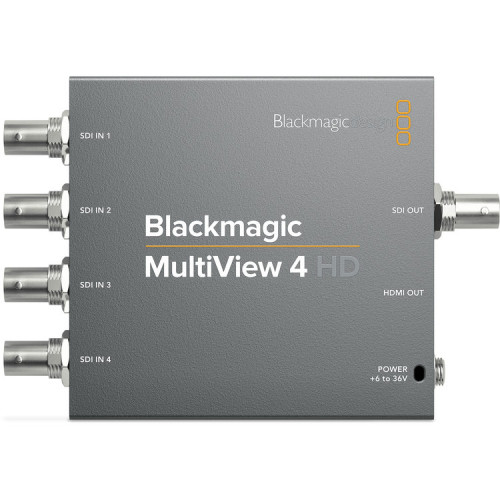

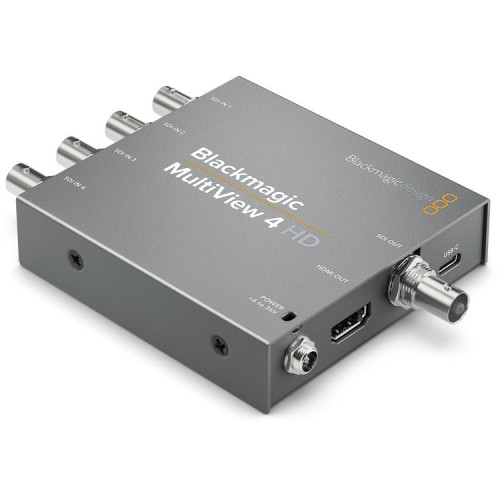

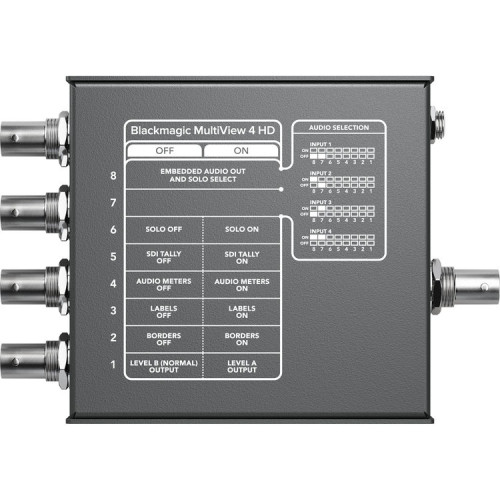

Blackmagic MultiView 4 HD compact mini-converter

  • Brand: Blackmagic
  • Product Code: HDL-MULTIP3G/04HD
  • Availability: In Stock

  • $265


0 reviews / Write a review

Key Features
  • 4 x SD/HD/3G-SDI Inputs
  • 1 x SDI & 1 x HDMI Outputs
  • Automatic Signal Detection
  • SDI Re-Clocking on Output
  • Monitor EDID Support
  • Display Custom Labels & Audio Metering
  • Compact Metal Housing
  • Quad Multiviewer

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.

Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.

Features
  • Four SDI inputs output to one SDI and one HDMI multiview
  • Automatic signal detection, SDI output re-clocking
  • Monitor any combination of HD or SD formats, and frame rates
  • Display custom labels, audio metering, and more on each view
Key Specs
Embedded Audio
SDI
Interfaces
Embedded Audio
SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656
Reclocking
No
HDR Support
No
HDCP Support
No
OS Compatibility
macOS 10.15
macOS 11.1 or Later
Windows 10 or Later (64-Bit Only)
Transmission
Maximum Sampling Rate
48 kHz / 24-Bit
Power
Power I/O
1x Barrel Input
Power Consumption
6 to 36 VDC (5.5 W)
General
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Dimensions
4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm
Weight
8.53 oz / 0.24 kg
Packaging Info
Package Weight
1.07 lb
Box Dimensions (LxWxH)
5.75 x 5.55 x 2.55"
